Industrial Vertical Tubular Dyeing Machine

Industrial Vertical Tubular Dyeing Machine

405000.00 INR/Unit

Product Details:

  • Weight 50-100 Kilograms (kg)
  • Power 2 to 6 Kw Volt (v)
  • Voltage 220-440 Volt (v)
  • Type HTHP VERTICAL TUBULAR DYEING MACHINE
  • Applicable Material AISI SS 316Ti/316L
  • Click to View more
X

Price And Quantity

  • 405000.00 INR/Unit
  • 1 Unit

Product Specifications

  • HTHP VERTICAL TUBULAR DYEING MACHINE
  • 2 to 6 Kw Volt (v)
  • 220-440 Volt (v)
  • AISI SS 316Ti/316L
  • 50-100 Kilograms (kg)

Trade Information

  • Telegraphic Transfer (T/T) Cash in Advance (CID) Cheque Cash Advance (CA)
  • 1 Unit Per Month
  • 1 Week
  • All India

Product Description

The HTHP Vertical Tubular Dyeing Machines are the economical as well as eco-friendly machines, designed to run into all dye-house demands of sampling. These are often required in the dyeing industry and deliver the best solution to bring forth the needed amount of dyed yarn that consequently assists in saving high-priced materials as well as unneeded production loss. Provided with an ultra low liquor ratio, these machines make use of less water and ensure savings in heat as well as electrical energy. HTHP Vertical Tubular Dyeing Machines enable less effluent discharge and are highly applicable for dyeing industry.

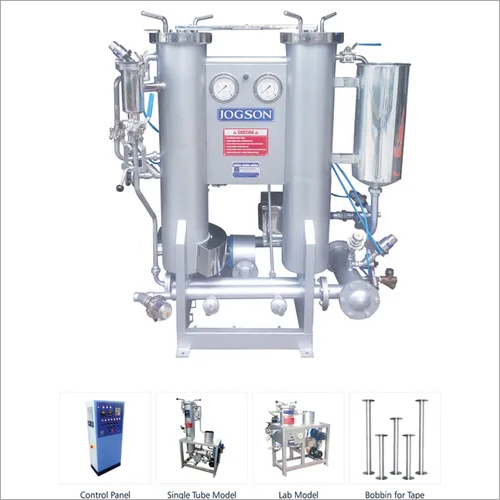

Hthp Vertical Tubular Dyeing Machine

JOGSON has Developed Economical and Eco Friendly Tubular Type Dyeing Machine for capacities from 1 kg. to 40 kg. per batch. This machine is specially designed for samples and small lots to check the dyeing recipes used in production. Yarn Dyeing Industry also needed a versatile sample dyeing machine for their lab and R&D, so we developed Multi Pot sample dyeing machine to cater their need. JOGSON Multi Pot Sample Dyeing Machine is ideal to run 2, 3 or upto 6 Pots coupled to each other, dyeing yarns of same colour or running individually to dye yarn of different colour at same time. Each pot has a range from 100 gms. to 1.5 kg. per batch It is often required in the dyeing industry to get a sample approved from the customer. So HTHP Vertical Tubular Dyeing Machine & Multi Pot Sample Dyeing Machine provides the best solution to produce the required amount of coloured sample which in turn helps to save expensive materials & unnecessary production loss. The machine is suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, Zipper, Hanks, Ribbons, Tops & Loose Fiber.

Features

  • Machine body and all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
  • Turbo pump for liquor circulation (In-Out and Out-In) with Inverter drive for varying speed
  • Control panel with JOGSON dyeing programmer TPR13/PLand touch interface (Optional)
  • Ultra low MLR of 1:3
  • Air pad system to insert air manually into the machine to create static pressure and to minimize the liquor ratio
  • Colour addition tank with Injection Pump for dozing the dye liquor into the machine
  • High efficient heat exchanger which has no heat loss to the ambient
  • Variable loading with flexible loading spindles or capacity reducing dummies
  • HT Drain - the machine can be drained at 130 Degree C
  • Sampling pot to check the dyeing result while machine is in operation
  • Pneumatically operated front door locking / unlocking
  • Human/Machine safety interlocks

Optional Features

  • Multiple fill, metered fill, ratio fill
  • Multiple drain
  • Various heating methods such as electric heaters, thermic fluid, steam & gas/diesel burner
  • Full capacity Stock Tank with heating & mixing stirrer and transfer pump
  • ph meter
  • Hydro extraction device

Advantages

  • Compact arrangement of JOGSON turbo pump, Heat exchanger and piping is the main key to floor space saving
  • Ultra Low MLR of 1:3, consumes less dyestuff, chemicals, steam, water & produces less effluent discharge, hence it  ECO friendly & reduces the Production Cost
  • Inverter driven turbo pump for variable flow control; saves upto 40% power consumption hence more Energy Efficient
  • HT drain at 130 Degree C  for oligomers elimination during polyester dyeing process
  • Variable loading with dummies maintains constant MLR & flow rate
  • Working platform is not required as the top most tube in which the carrier is to be loaded is at the height of 1.5 mtr approx
  • Overhead hoist need not to be installed as the carriers are loaded from front in the machine
  • Excellent dyeing result and levelness, reduces yarn loss
  • Water level, pressure, distinctive temperature multiple safety interlock, ensures operational safety

Technical Data

  • Maximum design pressure 5 bar
  • Maximum design temperature 140 Degree C
  • Heating gradient 25 Degree C - 130 Degree C  approx at 5 Degree C  /min. (Dry Saturated steam pressure at 7 bar)
  • Cooling gradient 130 Degree C - 85 Degree C  approx at 3.5 Degree C /min. (Cold water of 25 Degree C  at 3 bar)

Technical Specification

    Model

    JVT

    1

    JVT

    2

    JVT

    4

    JVT

    6

    JVT

    8

    JVT

    10

    JVT

    14

    JVT

    18

    JVT

    20

    JVT

    24

    JVT

    30

    JVT

    40

    Max. Batch (kg)

    1

    2

    4

    6

    8

    10

    14

    18

    20

    24

    30

    40

    Electric load(kg)

    2.25

    2.25

    2.25

    2.25

    2.95

    2.95

    2.95

    4.45

    4.45

    4.45

    4.45

    6.25

    • We reserve our rights to make any changes without prior notice

    • Batch capacity of the machine may vary according to the material i.e. Polyester, Cotton, Viscose, Silk, Tape, etc.

    • Electric load mentioned above is of turbo pump fitted with electric motor and dozing pump

    • Scope of delivery and technical specification of the product supplied shall be in accordance with the contract
