HTHP VERTICAL DYEING MACHINE

HTHP VERTICAL DYEING MACHINE
HTHP VERTICAL DYEING MACHINE
Send Inquiry
Product Code : 15
Brand Name : JOGINDRA INDUSTRIES
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 405000 INR
Product Specifications
  • Power
  • 3 - 115 kW
  • Applicable Material
  • Mild Steel
  • Type
  • HTHP VERTICAL DYEING MACHINE
  • Voltage
  • 220-440 Volt (v)
  • Weight
  • 50-100 Kilograms (kg)
Product Description

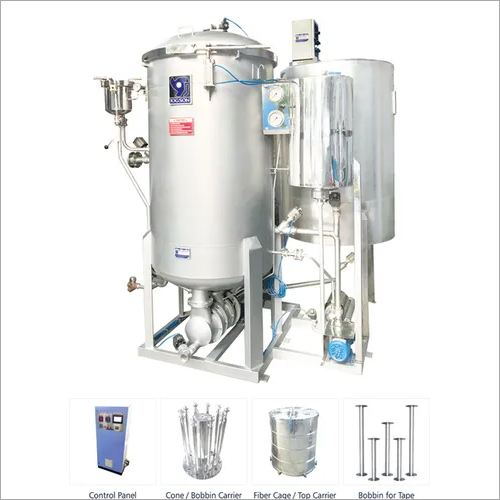

Hthp Vertical Dyeing Machine

JOGSON has Developed Economical & Eco Friendly Tubular Type Dyeing Machine for capacities from 1 kg. to 40 kg. per batch. This machine is specially designed for samples and small lots to check the dyeing recipes used in production. Yarn Dyeing Industry also needed a versatile sample dyeing machine for their lab and R&D, so we developed Multi Pot sample dyeing machine to cater their need. JOGSON Multi Pot Sample Dyeing Machine is ideal to run 2, 3 or upto 6 Pots coupled to each other, dyeing yarns of same colour or running individually to dye yarn of different colour at same time. Each pot has a range from 100 gms. to 1.5 kg. per batch It is often required in the dyeing industry to get a sample approved from the customer. So HTHP Vertical Tubular Dyeing Machine & Multi Pot Sample Dyeing Machine provides the best solution to produce the required amount of coloured sample which in turn helps to save expensive materials & unnecessary production loss. The machine is suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, Zipper, Hanks, Ribbons, Tops & Loose Fiber.

Features

  • Machine body & all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
  • Turbo pump for liquor circulation (In-Out & Out-In) with Inverter drive for varying speed
  • Control panel with JOGSON dyeing programmer TPR13/PLC & touch interface (Optional)
  • Ultra low MLR of 1:3
  • Air pad system to insert air manually into the machine to create static pressure and to minimize the liquor ratio
  • Colour addition tank with Injection Pump for dozing the dye liquor into the machine
  • High efficient heat exchanger which has no heat loss to the ambient
  • Variable loading with flexible loading spindles or capacity reducing dummies
  • HT Drain - the machine can be drained at 130° C
  • Sampling pot to check the dyeing result while machine is in operation
  • Pneumatically operated front door locking / unlocking
  • Human/Machine safety interlocks

Optional Features

  • Multiple fill, metered fill, ratio fill
  • Multiple drain
  • Various heating methods such as electric heaters, thermic fluid, steam & gas/diesel burner
  • Full capacity Stock Tank with heating & mixing stirrer and transfer pump
  • ph meter
  • Hydro extraction device

Advantages

  • Compact arrangement of JOGSON turbo pump, Heat exchanger and piping is the main key to floor space saving
  • Ultra Low MLR of 1:3, consumes less dyestuff, chemicals, steam, water & produces less effluent discharge, hence its ECO friendly & reduces the Production Cost
  • Inverter driven turbo pump for variable flow control; saves up to 40% power consumption hence more Energy Efficient
  • HT drain at 130°C for oligomers elimination during polyester dyeing process
  • Variable loading with dummies maintains constant MLR & flow rate
  • Working platform is not required as the top most tube in which the carrier is to be loaded is at the height of 1.5 mtr approx
  • Overhead hoist need not to be installed as the carriers are loaded from front in the machine
  • Excellent dyeing result and levelness, reduces yarn loss
  • Water level, pressure, distinctive temperature multiple safety interlock, ensures operational safety

Technical Data

    • Maximum design pressure 5 bar
    • Maximum design temperature 140°C
    • Heating gradient 25°C - 130°C approx at 5°C /min. (Dry Saturated steam pressure at 7 bar)
    • Cooling gradient 130°C - 85°C approx at 3.5°C/min. (Cold water of 25°C at 3 bar)

    Technical Specification

      Model

      JVD 10

      JVD 20

      JVD 30

      JVD 40

      JVD 50

      JVD 60

      JVD 80

      JVD 100

      JVD 150

      JVD 200

      JVD 250

      JVD 300

      JVD 400

      JVD 500

      JVD 800

      JVD 1000

      Max .Batch (Kg)

      10

      20

      30

      40

      50

      60

      80

      100

      150

      200

      250

      300

      400

      500

      800

      1000

      Electric Load (Kw)

      2.9

      4.45

      4.45

      6.25

      6.25

      6.25

      8.25

      10

      11.75

      15.75

      19.25

      19.25

      22.75

      30.75

      37.75

      75.75

      • We reserve our rights to make any changes without prior notice

      • Batch capacity of the machine may vary according to the material i.e. Polyester, Cotton, Viscose, Silk, Tape, etc.

      • Electric load mentioned above is of turbo pump fitted with electric motor and dozing pump

      • Scope of delivery and technical specification of the product supplied shall be in accordance with the contract



      Trade Information
      • Payment Terms
      • Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID), Cash Advance (CA)
      • Supply Ability
      • 1 Unit Per Month
      • Delivery Time
      • 1 Week
      • Main Domestic Market
      • All India
