Automatic Hot Air Dryers

50000.00 - 200000.00 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 50000.00 - 200000.00 INR/Unit

Trade Information

Payment Terms Telegraphic Transfer (T/T) Cash in Advance (CID) Cheque Cash Advance (CA)
Supply Ability 1 Unit Per Month
Delivery Time 1 Week
Main Domestic Market All India

Product Description

The Automatic Hot Air Dryers are the portable apparatuses, which assists in the quick drying of materials that are wet with moisture. These ensure the drying of almost all sort of natural as well as man made yarns such as viscose, acrylic, silk, wool, polyester, cotton etc. Possession of these driers are highly beneficial for the textile & plastics business, enabling simple & efficient production. Offered Hot Air Driers are proffered as the high-quality processing machinery. These are accessible with the added advantage of saving your valuable time & money. This machine is totally economical in its energy utilization and makes reduction in the business expenditures.

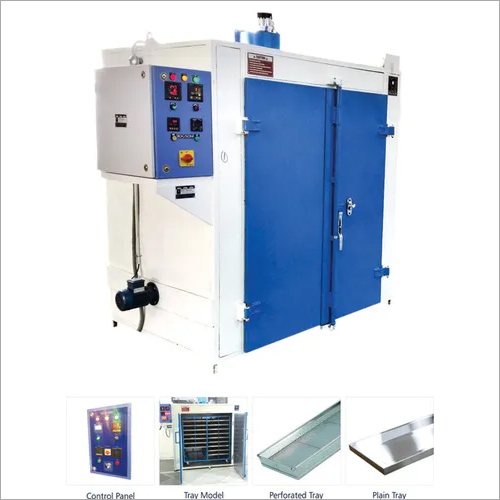

Automatic Hot Air Dryers

Hot Air Drier is specially designed for drying almost all types of natural and man made Yarns like Polyester, Cotton, Viscose, Acrylic, Silk, Wool in various form like Loose Fiber, Hanks and Cones .

Construction : Exterior is made of fully insulated mild steel square pipe and covered with mild steel sheet with powder coated paint finish. Interior, the insulation is covered with galvanized sheet duly coated with high temperature resistant coating.
Insulation : All sides of drier cabinet are fully insulated with 50 mm thick glass wool for preventing Heat Loss / Heat leakage.
Doors : Front open able hinged doors, insulated with 50 mm thick glass wool & door are lined with silicon rubber gasket for preventing any heat loss.
Locking : In case of single door cabinet, spring and roller type latch is provided & in case of double door cabinet, container type rod locking assembly is provided for effective secure seal.
Air Circulation : Forced air circulation is done by specially designed re-circulation blowers fitted inside the drier for better uniformity of temperature inside the chamber.
Ventilation : Very efficient electric De-humidifier operated with digital timer is provided along with adjustable manual air damper.
Heating : Various heating methods are offered as per the requirement such as electric heating, heating by thermic fluid or steam with fin type heat exchanger.
Carrier Trolley : For loose hanks carrier trolley is provided with aluminum hanger for hanging the hanks. Removable trays are provided for drying loose fiber and trims. Creel type trolley is provided for drying cones and bobbins. Drier is designed with foldable ramp for loading/unloading the carrier trolley.
Automatic Power Control Panel : Equipped with JOGSON Temperature Programmer TPR-14 which controls up to 8 programs with battery backup, blower fan On/Off, rate of temperature rise, hold time, operator call and memory retention in case of power failure.

Technical Specification:

Model	JHAD 50	JHAD 100	JHAD 150	JHAD 200	JHAD 250	JHAD 300	JHAD 400	JHAD 500	JHAD 600	JHAD 1000
Max Batch Kg)	50	100	150	200	250	300	400	500	600	1000
Electric load (kw)	1	1	1.5	1.5	1.5	1.5	2.2	2.2	2.2	5.5
